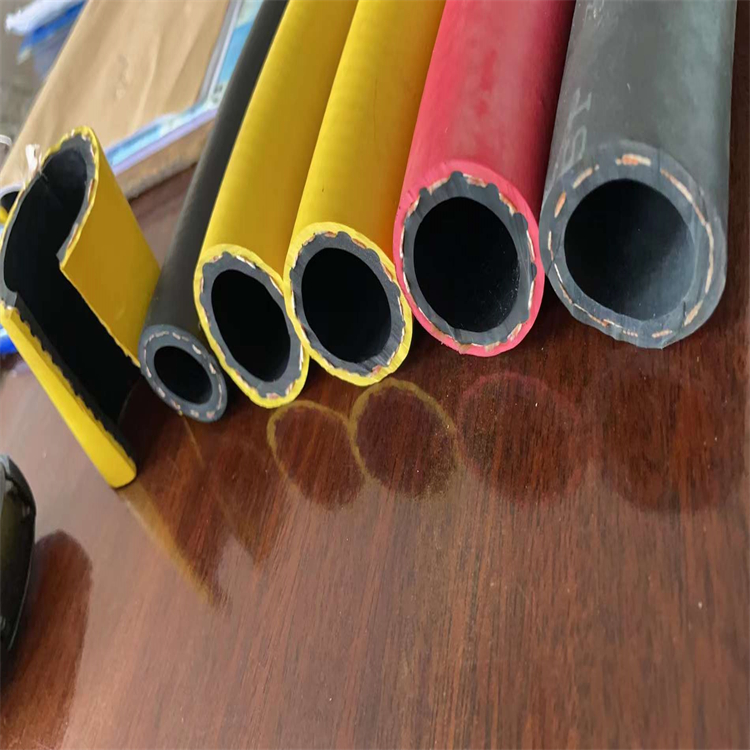

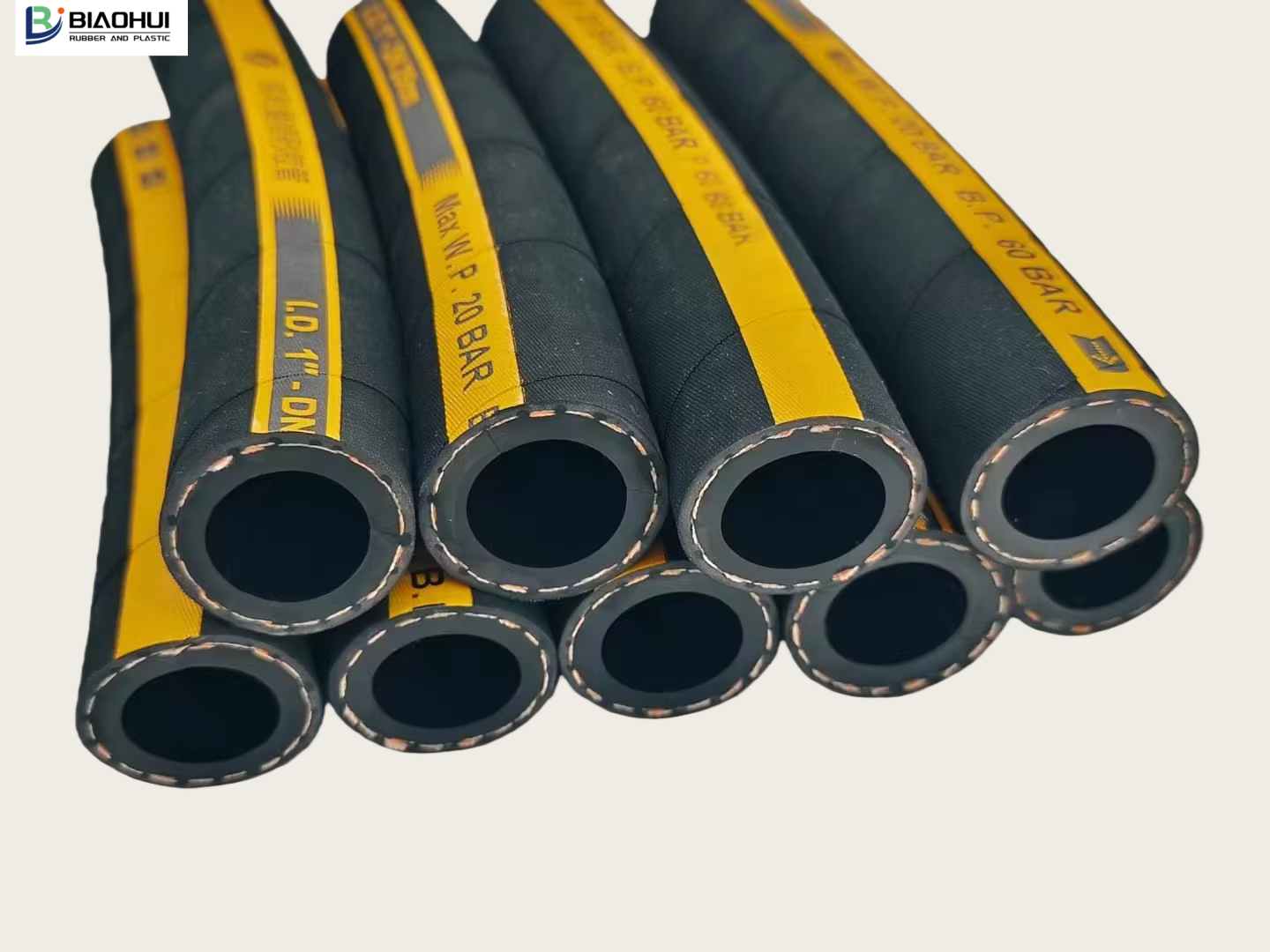

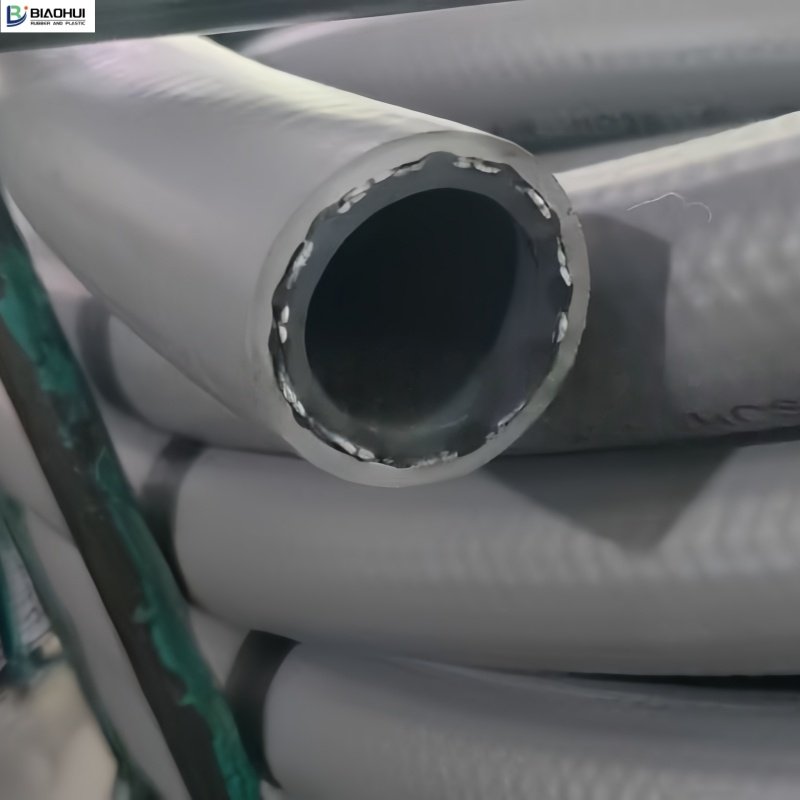

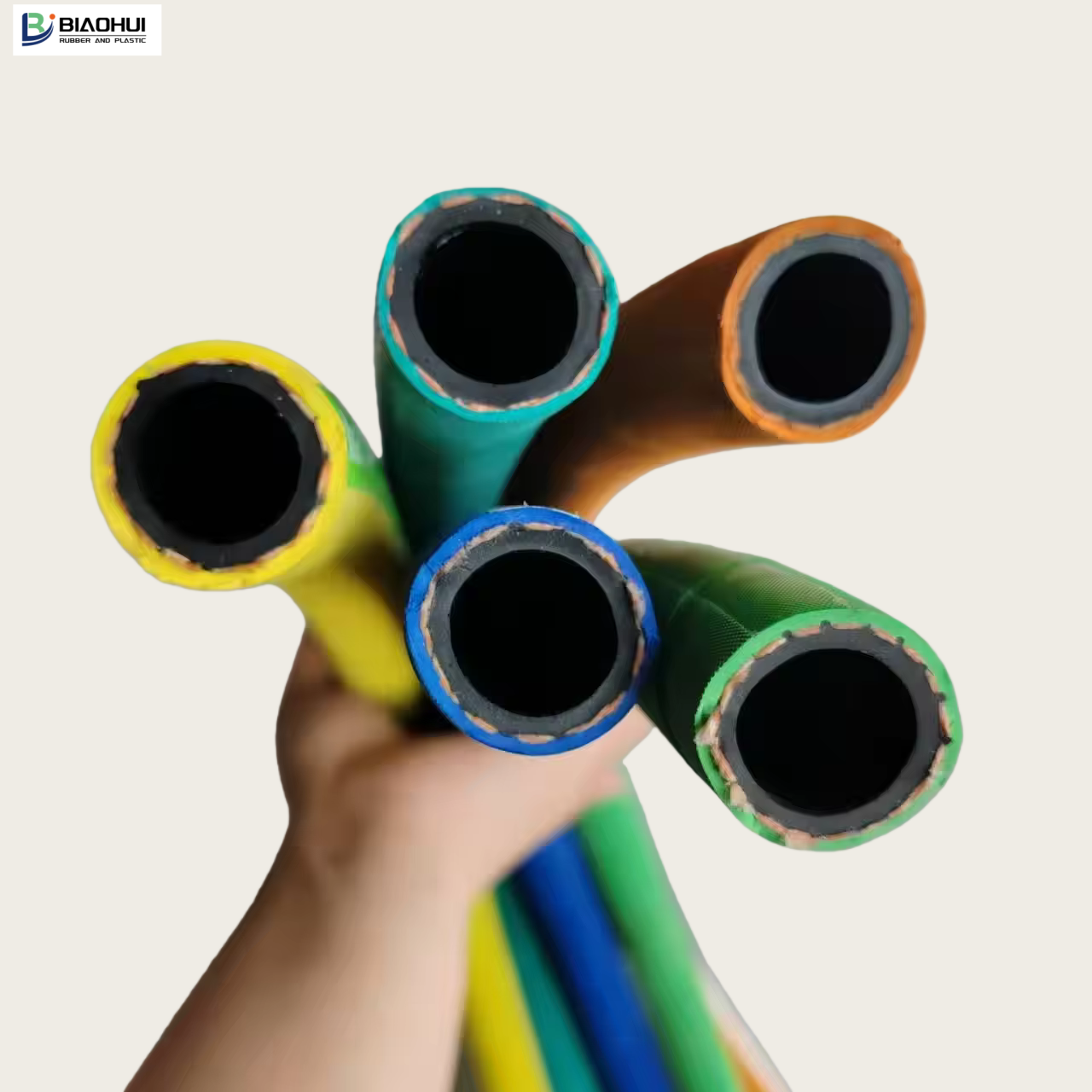

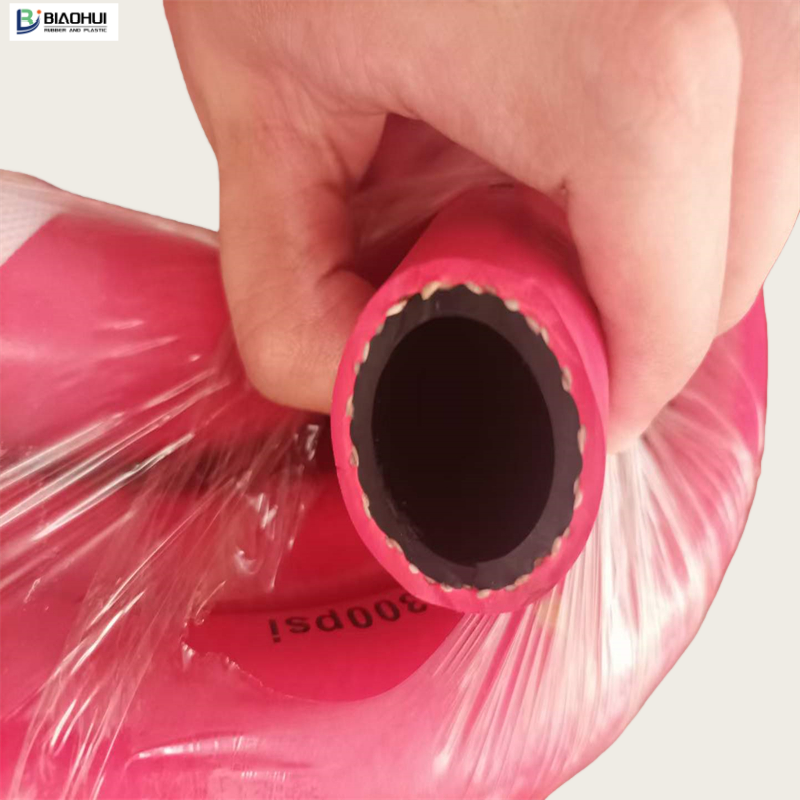

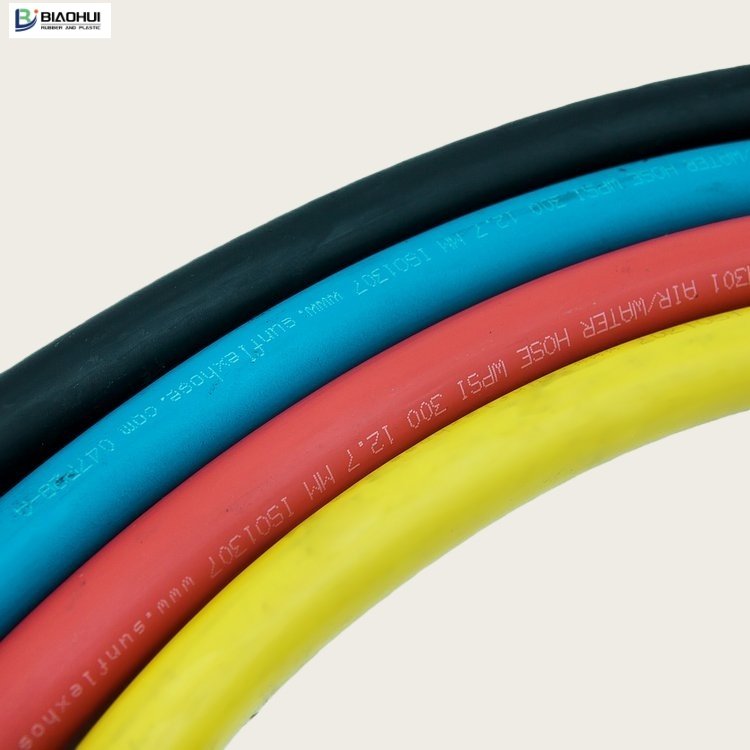

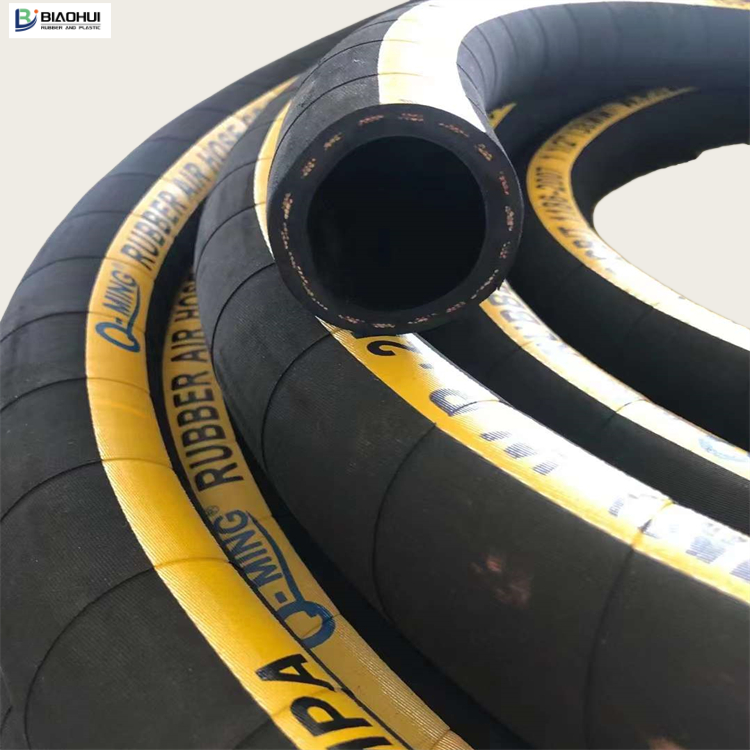

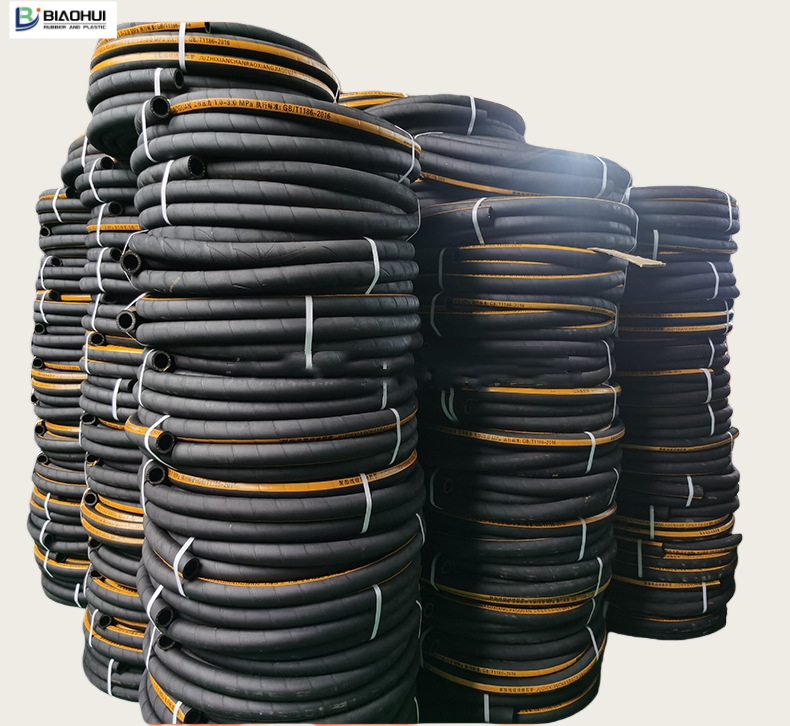

Textile reinforced air hose
Description

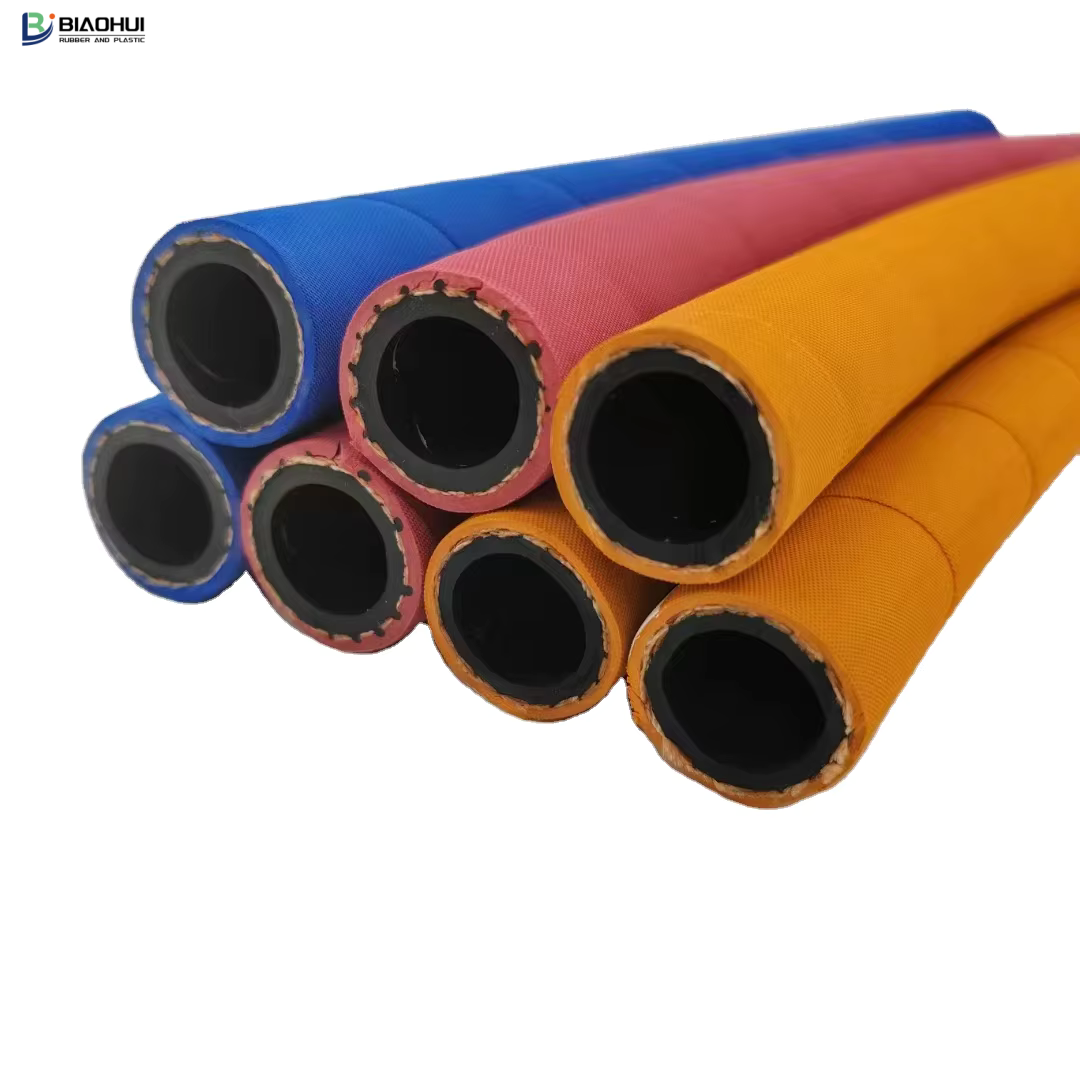

Construction:
Tube: NR & SBR synthetic rubber, black color.
Reinforcement:1ply or 2ply high tensile polyester thread braiding

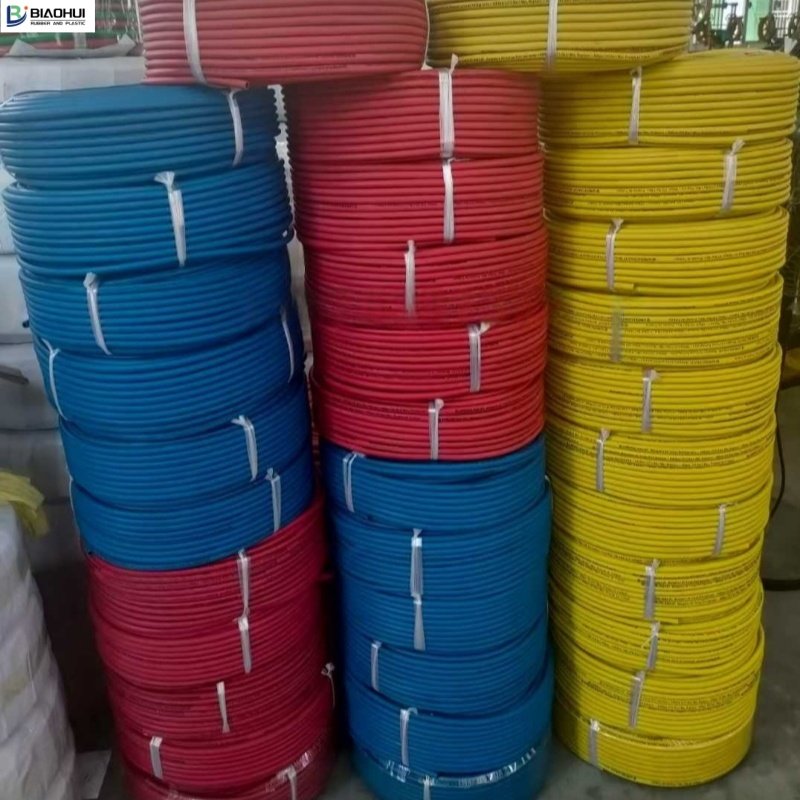

Cover: NR & SBR synthetic rubber,smooth or wrapped surfac, black,yellow,red available
Application:
Mainly used for conveying of air, inert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Temperature: -40℃(-104℉)to 70℃（+158℉）
Characteristics:
Oil mist resistant tube
Anti-aging synthetic rubber
Weather and ozone resistant
Excellent abrasion resistance
| Air Hose Wrapped Surface 300PSI | |||||||
| Item Code | I.D | O.D | W.P | B.P | L | ||
| inch | mm | mm | bar | bar | m | ft | |
| CAH-005 | 3/16″ | 4.8 | 12 | 20 | 60 | 100 | 330 |
| CAH-006 | 1/4″ | 6.4 | 13 | 20 | 60 | 100 | 330 |
| CAH-008 | 5/16″ | 7.9 | 15 | 20 | 60 | 100 | 330 |
| CAH-010 | 3/8″ | 9.5 | 17 | 20 | 60 | 100 | 330 |
| CAH-012 | 1/2″ | 12.7 | 23 | 20 | 60 | 100 | 330 |
| CAH-019 | 3/4″ | 19.1 | 30 | 20 | 60 | 100 | 330 |
| CAH-025 | 1″ | 25.4 | 37 | 20 | 60 | 100 | 330 |
| CAH-032 | 1-1/4″ | 31.8 | 46 | 20 | 60 | 60 | 200 |
| CAH-038 | 1-1/2″ | 38.1 | 52 | 20 | 60 | 60 | 200 |
| CAH-050 | 2″ | 50.8 | 68 | 20 | 60 | 60 | 200 |
| CAH-064 | 2-1/2″ | 63.5 | 80 | 20 | 60 | 60 | 200 |
| CAH-076 | 3″ | 76.2 | 92 | 20 | 60 | 60 | 200 |
| CAH-102 | 4″ | 101.6 | 120 | 20 | 60 | 60 | 200 |
| Air Hose Smooth Surface 300PSI | |||||||
| Item No. | I.D | O.D | W.P | B.P | L | ||
| inch | mm | mm | bar | bar | m | ft | |
| RAS-005 | 3/16″ | 4.8 | 12 | 20 | 60 | 100 | 330 |
| RAS-006 | 1/4″ | 6.4 | 13 | 20 | 60 | 100 | 330 |
| RAS-008 | 5/16″ | 7.9 | 15 | 20 | 60 | 100 | 330 |
| RAS-010 | 3/8″ | 9.5 | 17 | 20 | 60 | 100 | 330 |
| RAS-012 | 1/2″ | 12.7 | 21 | 20 | 60 | 100 | 330 |
| RAS-016 | 5/8″ | 15.9 | 26 | 20 | 60 | 100 | 330 |
| RAS-019 | 3/4″ | 19.1 | 29 | 20 | 60 | 100 | 330 |
| RAS-025 | 1″ | 25.4 | 36 | 20 | 60 | 100 | 330 |
| RAS-032 | 1-1/4″ | 31.8 | 44 | 15 | 45 | 60 | 200 |
| RAS-038 | 1-1/2″ | 38.1 | 54 | 15 | 45 | 60 | 200 |
| RAS-050 | 2″ | 50.8 | 66 | 15 | 45 | 60 | 200 |
| Air Hose Wrapped Surface 400PSI | |||||||
| Item Code | I.D | O.D | W.P | B.P | L | ||
| inch | mm | mm | bar | bar | m | ft | |
| CAH4-005 | 3/16″ | 4.8 | 12 | 28 | 84 | 100 | 330 |
| CAH4-006 | 1/4″ | 6.4 | 13 | 28 | 84 | 100 | 330 |
| CAH4-008 | 5/16″ | 7.9 | 15 | 28 | 84 | 100 | 330 |
| CAH4-010 | 3/8″ | 9.5 | 17 | 28 | 84 | 100 | 330 |
| CAH4-012 | 1/2″ | 12.7 | 23 | 28 | 84 | 100 | 330 |
| CAH4-019 | 3/4″ | 19.1 | 30 | 28 | 84 | 100 | 330 |
| CAH4-025 | 1″ | 25.4 | 37 | 28 | 84 | 100 | 330 |
| CAH4-032 | 1-1/4″ | 31.8 | 46 | 28 | 84 | 60 | 200 |
| CAH4-038 | 1-1/2″ | 38.1 | 52 | 28 | 84 | 60 | 200 |
| CAH4-050 | 2″ | 50.8 | 68 | 28 | 84 | 60 | 200 |
