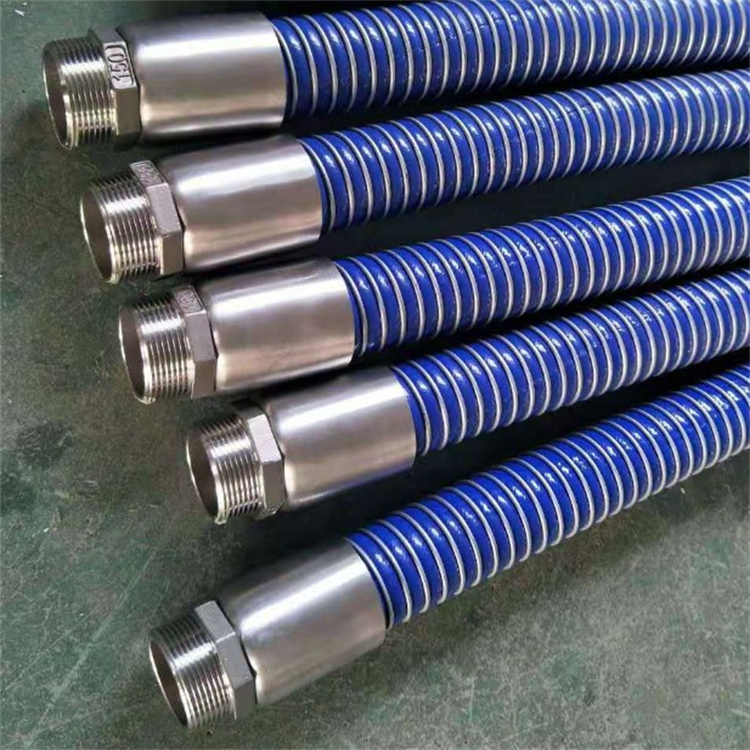

Multi purpose chemical resistant composite hose
Description
Temp. Range: -30°C to + 80°C
Application: This anti-static composite hose is designed for suction and discharge use on plant or road/rail tankers with a wide range of chemicals. The hose construction is exceptionally lightweight and flexible for ease of handling yet remains robust, hard-wearing and cost effective. Electrically resistant to less than 10 ohms.
Standard/Approval: BS EN13765：2003 and BS5842：1980（1996）
Length: 3/4” up to 4” 40m, 5” up to 8” 20m
GSP also can be available.
| Name | Core | Structure |
| Multi purpose chemical resistant composite hose | PSP | Internal helix: Polypropylene coated steel,external helix: Stainless steel,inner tube: polypropylene film |
| SGP | Internal helix: Stainless steel，external helix: galvanized steel，inner tube: polypropylene film |
| Code | In | B.R | W.P | B.P | length | |
| in. | mm | mm | bar | bar | m | |
| 25 | 1″ | 25 | 100 | 17 | 51 | 40 |
| 38 | 1-1/2″ | 38 | 112 | 17 | 51 | 40 |
| 51 | 2″ | 51 | 150 | 17 | 51 | 40 |
| 65 | 2-1/2″ | 65 | 190 | 17 | 51 | 40 |
| 76 | 3″ | 76 | 225 | 17 | 51 | 40 |
| 102 | 4″ | 102 | 350 | 17 | 51 | 40 |
| 152 | 6″ | 152 | 600 | 17 | 51 | 20 |
| 203 | 8″ | 203 | 850 | 17 | 51 | 20 |
| Note: A hose with a pressure of 10 bar can be provided. | ||||||
