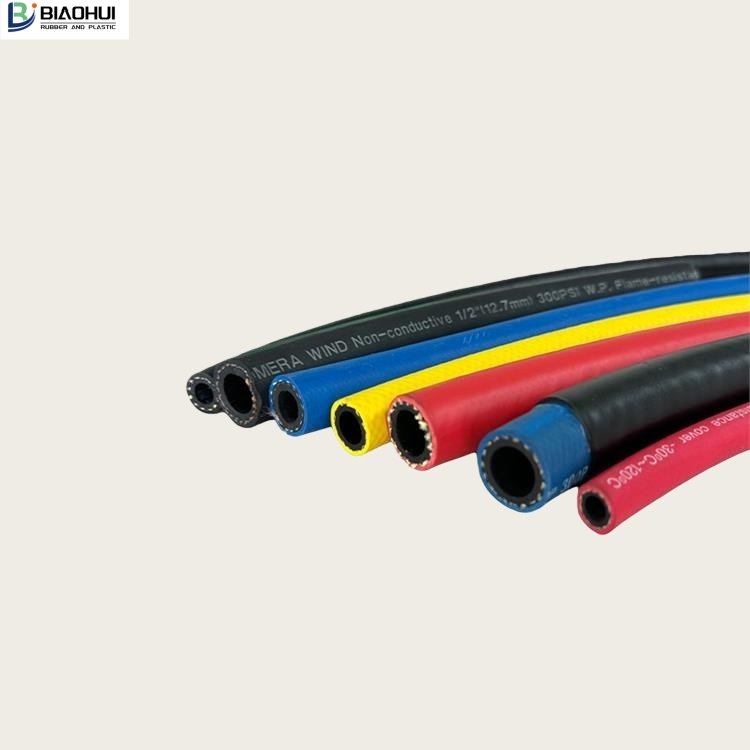

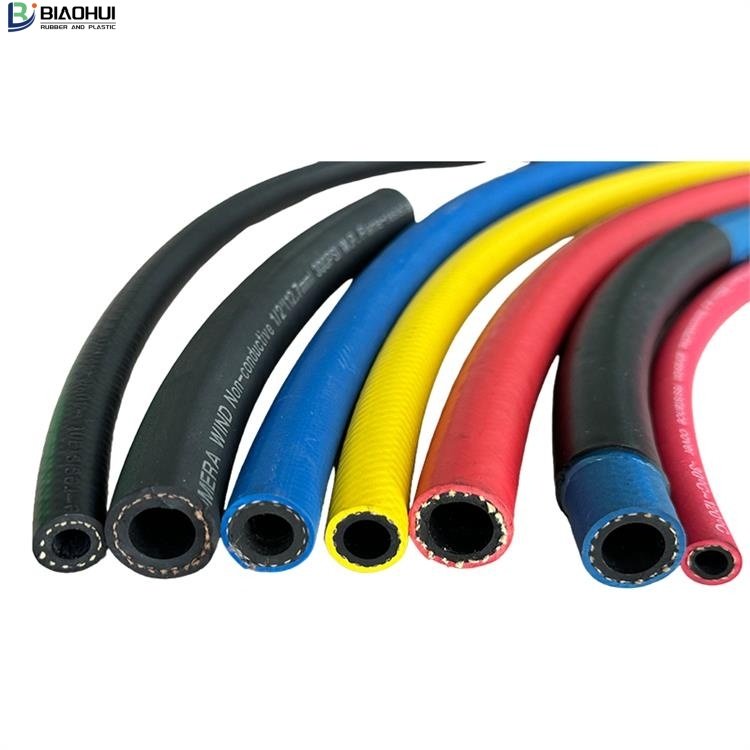

Mold cooling water hose
Description
Applications:

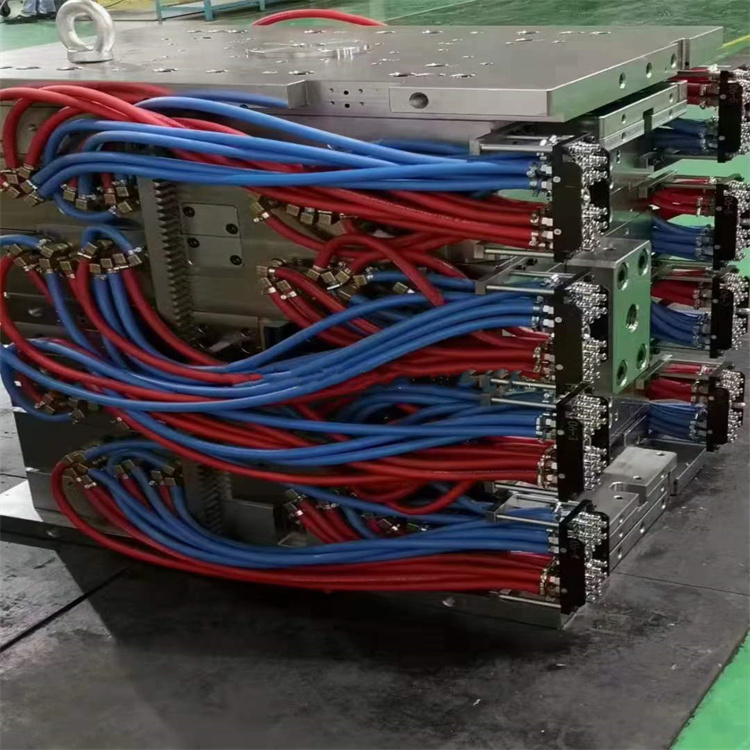

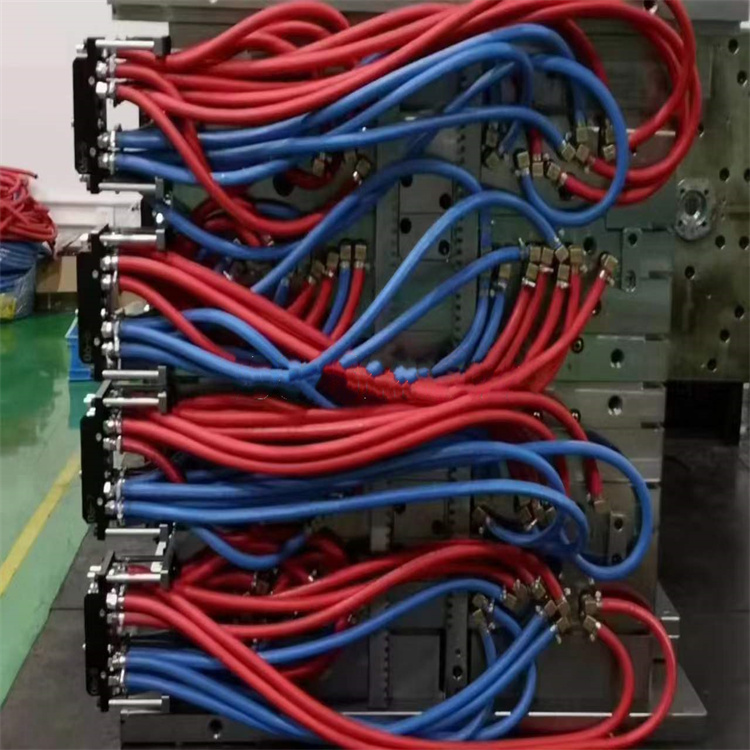

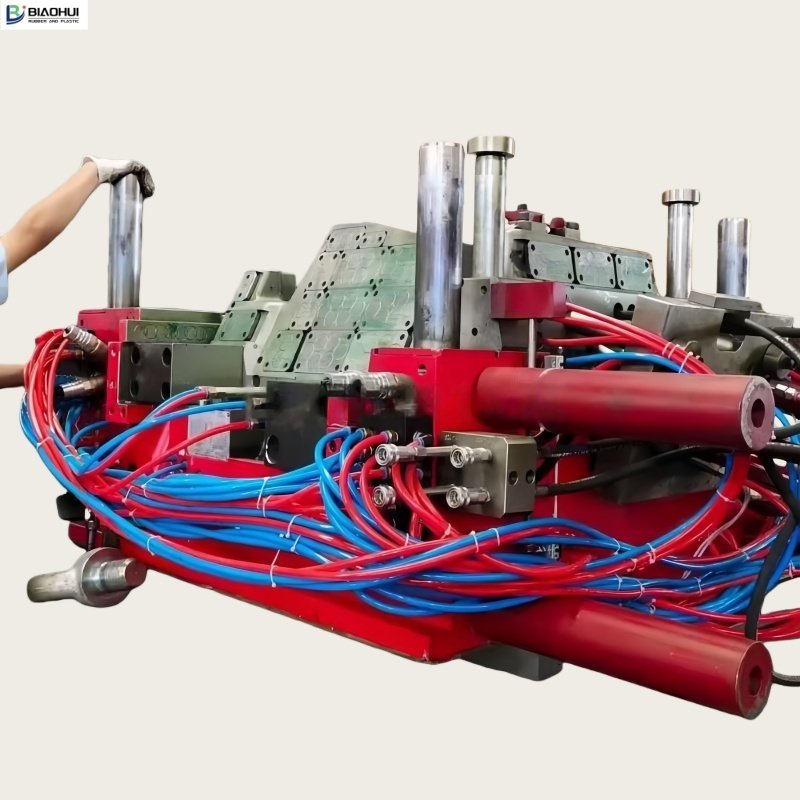

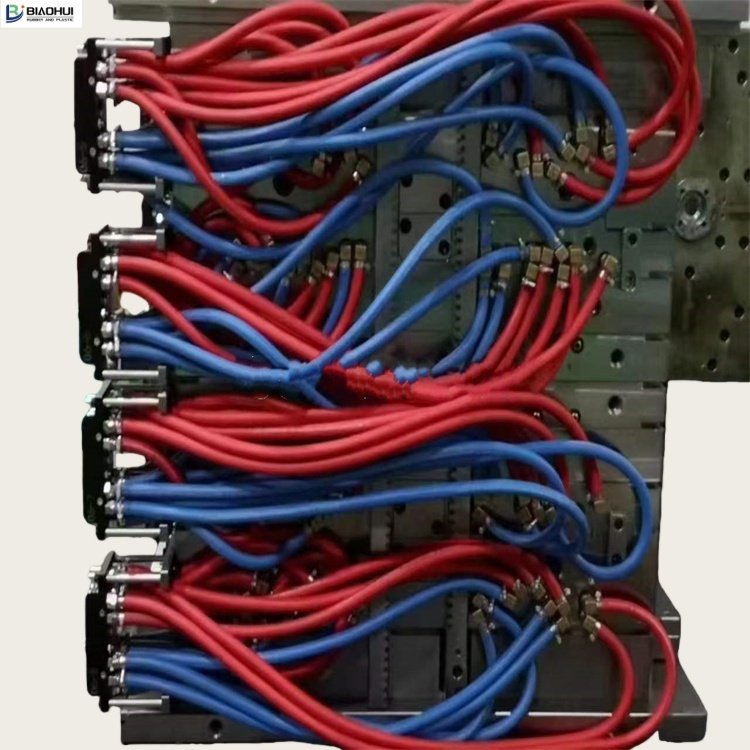

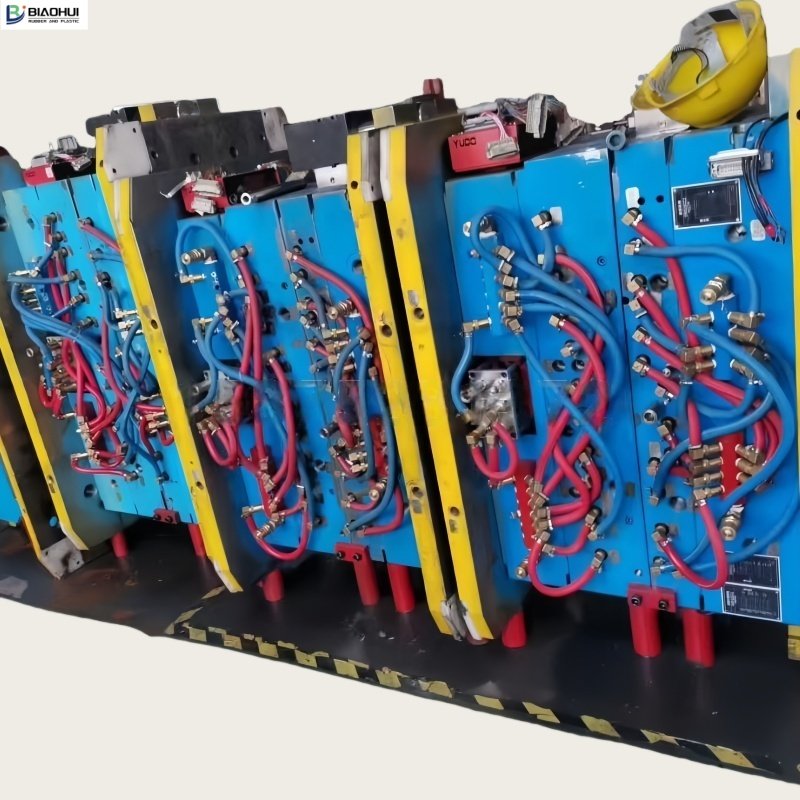

It is suitable for mold cooling and hot water discharge of injection molding machine.
Construction:
Tube: EPDM, black, smooth.
Reinforcement: High strength synthetic fiber.
Cover: EPDM, Red, black or blue, special needling treatment.
Temperature range: -40 °C +120 °C (regular type), -40 °C +160 °C (ultra-high temperature type).
Technical standard: BS EN ISO 6134, ROHS

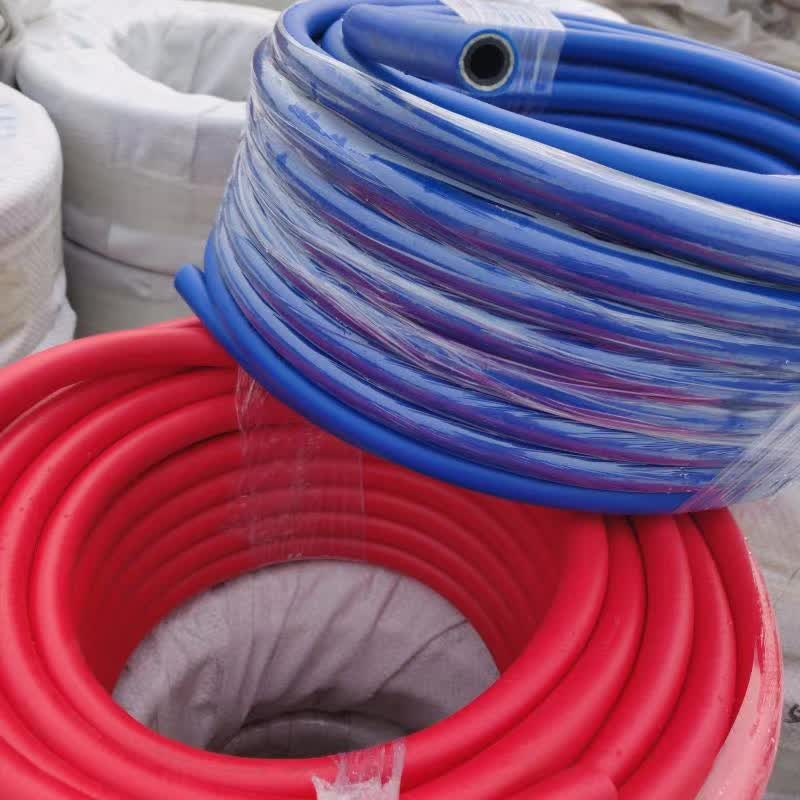

Color: Red, black or blue are available.
| 编码 | 内径 | 外径 | 弯曲半径 | 工作压力 | 爆破压力 | 每卷长度 | 颜色 | |
| inch | mm | mm | mm | PSI | PSI | m | ||
| MW010B | 3/8″ | 9.5 | 17 | 70 | 300 | 1200 | 100 | 蓝色 |
| MW010R | 3/8″ | 9.5 | 17 | 70 | 300 | 1200 | 100 | 红色 |
| MW010S | 3/8″ | 9.5 | 17 | 70 | 300 | 1200 | 100 | 黑色 |
| MW013B | 1/2″ | 12.7 | 21 | 120 | 300 | 1200 | 100 | 蓝色 |
| MW013R | 1/2″ | 12.7 | 21 | 120 | 300 | 1200 | 100 | 红色 |
| MW013S | 1/2″ | 12.7 | 21 | 120 | 300 | 1200 | 100 | 黑色 |
| MW019B | 3/4″ | 19 | 28 | 170 | 300 | 1200 | 60 | 蓝色 |
| MW019R | 3/4″ | 19 | 28 | 170 | 300 | 1200 | 60 | 红色 |
| MW019S | 3/4″ | 19 | 28 | 170 | 300 | 1200 | 60 | 黑色 |
